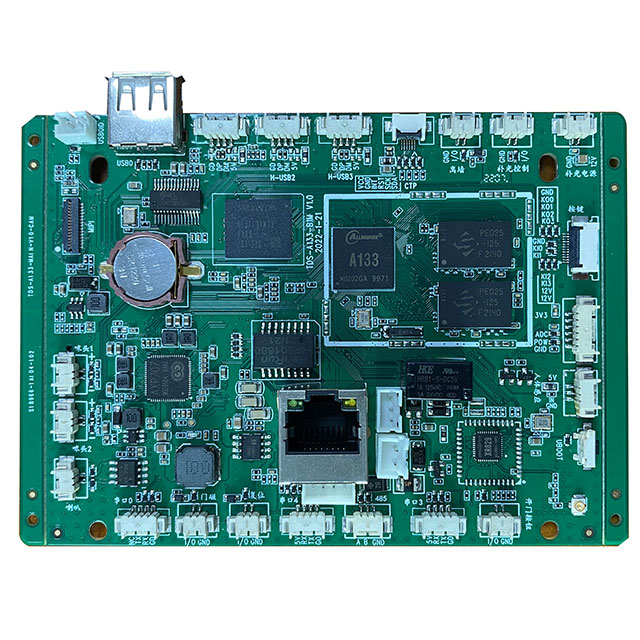

Allwinner A133 Embedded Industrial Control Board

Availability:

Quantity:



Inquire Add to Basket

Product Description

1.Product Highlights

High-Performance Core: Powered by the Allwinner A133 Quad-Core Cortex-A53 processor (up to 1.6GHz), ensuring smooth operation for multitasking and multimedia applications.

Rich Connectivity: Equipped with multiple USB ports, Ethernet (RJ45), LVDS/MIPI display interfaces, and audio I/O, supporting diverse peripheral expansions.

Stable & Reliable: Designed for 24/7 industrial environments with high stability and low power consumption.

Versatile OS Support: Compatible with Android 10 and Linux systems, offering flexible development options for various IoT projects.

Compact Design: Highly integrated layout saves space, making it ideal for slim devices like electronic class cards and wall-mounted displays.

2. Technical Specifications

Feature	Specification
Main Processor	Allwinner A133 (Quad-Core ARM Cortex-A53, up to 1.6GHz)
GPU	IMG PowerVR GE8300
RAM	Supports LPDDR3/LPDDR4 (Configurable: 1GB/2GB/4GB)
Storage	eMMC Flash (8GB/16GB/32GB/64GB) + TF Card Slot
Display Interface	LVDS / MIPI DSI / RGB (Supports 1080P output)
Network	1x RJ45 Ethernet Port (10/100M); Wi-Fi/BT module support (Optional)
USB Ports	Multiple USB 2.0 Host ports (Type-A & Pin header)
Audio	Mic Input, Speaker Output, Headphone Jack
Other Interfaces	UART, GPIO, I2C, ADC, RTC Battery Interface
Power Supply	DC 5V
Dimensions	Customizable
