1.Product Overview

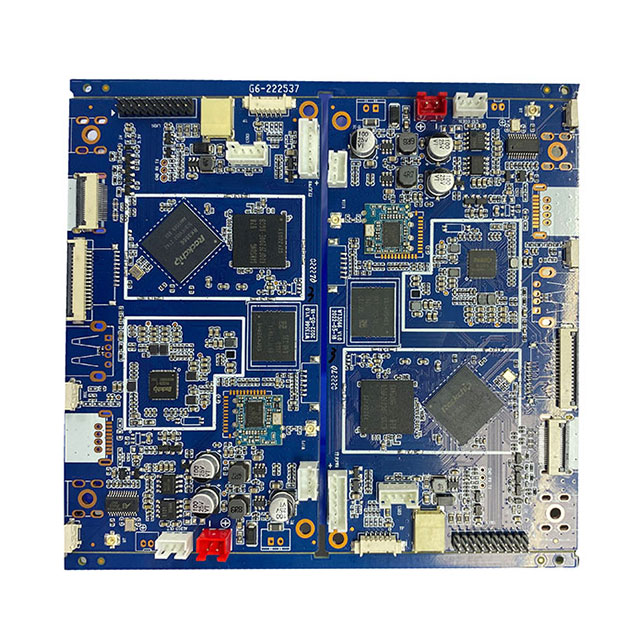

The Rockchip RK3568 Industrial Motherboard is a high-performance, low-power embedded computing platform designed for demanding industrial environments. Built around the quad-core Cortex-A55 architecture, this board delivers robust processing power for applications such as industrial automation, digital signage, medical equipment, and edge AI computing. Its compact form factor and rich I/O interfaces make it an ideal solution for system integrators looking for reliability and versatility in a single board computer (SBC).
2. Technical Specifications
Feature | Specification |
CPU | Rockchip RK3568, Quad-core ARM Cortex-A55, up to 2.0GHz |
GPU | ARM Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0 |
NPU | Built-in 1 TOPS AI accelerator |
RAM | 2GB / 4GB / 8GB LPDDR4x |
Storage | eMMC 5.1 (16GB/32GB/64GB/128GB), MicroSD card slot |
Video Output | 1x HDMI 2.0 (up to 4K@60Hz), 1x LVDS, 1x eDP |
Network | 2x Gigabit Ethernet (RJ45), Wi-Fi/BT optional |
USB | 2x USB 3.0 Host, 2x USB 2.0 Host, 1x USB 2.0 OTG |
Operating System | Android 11, Linux (Debian/Ubuntu/Buildroot) |
Power Supply | DC 12V / 2A |
3. Applications
Industrial Control: HMI panels, PLC gateways, robotics control.
Commercial Display: Digital signage, advertising players, self-service kiosks.
Medical: Patient monitoring systems, medical imaging terminals.
IoT & Edge Computing: Smart gateways, video analysis boxes.
