YS-F3568 SBC

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Product Overview

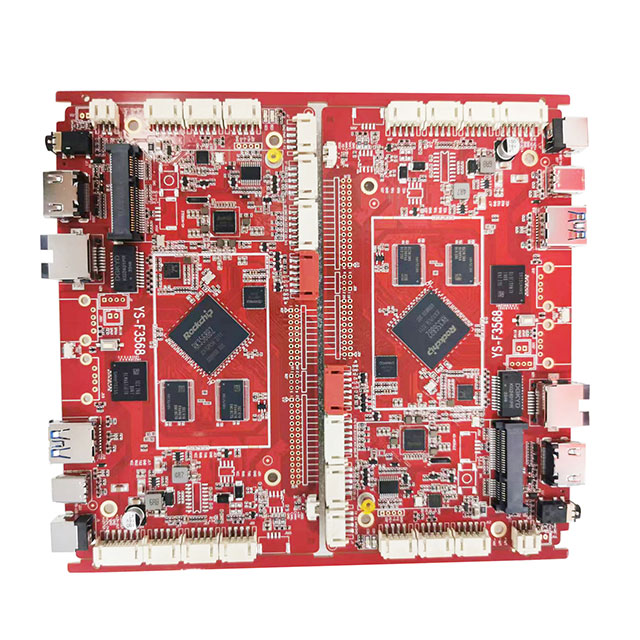

The YS-F3568 is a high-performance embedded development board powered by the Rockchip RK3568 quad-core processor. Built on an advanced 22nm process, it features a quad-core Cortex-A55 architecture clocked up to 2.0GHz and integrates a built-in NPU with 1 TOPS of computing power. With robust graphics capabilities (Mali-G52 GPU) and extensive multimedia interfaces, the YS-F3568 is engineered for industrial control, smart home gateways, edge computing, and high-end commercial displays. Its compact red PCB design and high-density interface layout make it an ideal choice for developers for rapid prototyping and mass production projects.

2. Technical Specifications

Parameter	Specification
SoC	Rockchip RK3568 (Quad-core Cortex-A55, 2.0GHz)
GPU	Mali-G52 2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1
NPU	1 TOPS (Supports INT4/INT8/INT16 mixed operation)
RAM	LPDDR4/LPDDR4x (Up to 8GB)
Storage	eMMC 5.1 (Up to 128GB), MicroSD Card Slot
Video Out	HDMI 2.0 (4K@60Hz), MIPI-DSI, LVDS, eDP
Video In	MIPI-CSI (Supports multiple cameras)
Network	Dual Gigabit Ethernet (RTL8211F), Wi-Fi/BT Module support
USB	1x USB 3.0 Host, 2x USB 2.0 Host, 1x USB 3.0 OTG
Expansion	PCIe 2.1, SATA 3.0, UART, SPI, I2C, GPIO, CAN bus
Power	DC 12V / Type-C Power Input
