1. Product Overview

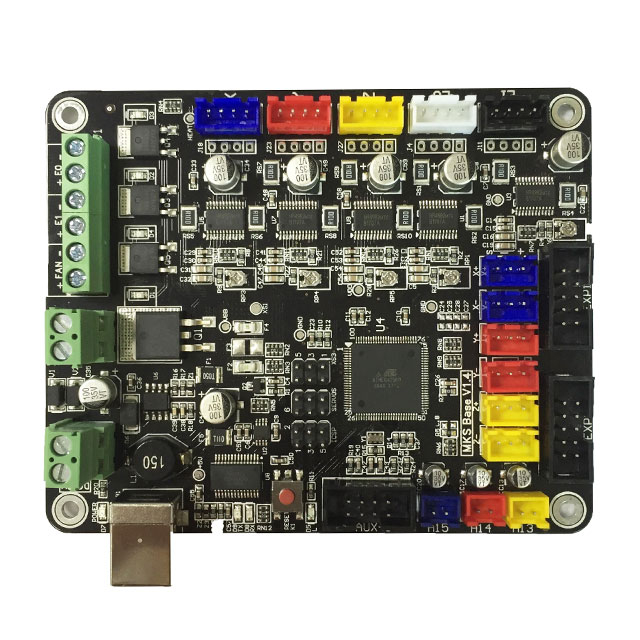

The MKS Base V1.4 is a highly integrated, all-in-one mainboard designed specifically for DIY 3D printers (such as Prusa i3 clones). Developed by Makerbase (MKS), this board simplifies the wiring process by combining the main controller, stepper drivers, and power distribution into a single compact PCB. It is widely compatible with popular firmware like Marlin and Repetier, making it a favorite choice for hobbyists and makers upgrading or building their own 3D printing machines.
2. Technical Specifications
Feature | Specification |
Product Model | MKS Base V1.4 |
PCB Size | Approx. 100mm x 100mm (Standard footprint) |
Input Voltage | 12V / 24V DC (Check jumper settings) |
Microcontroller | ATmega2560-16AU (Typical for this series) |
USB Chip | CH340 or similar (For serial communication) |
Stepper Drivers | Socket type (Supports A4988, DRV8825, etc.) |
Heated Bed Output | MOS tube controlled (High current capable) |
Hotend Output | Dual hotend support (Usually) |
Firmware Support | Marlin, Repetier, Smoothieware (via Arduino IDE) |
3. Applications
DIY 3D Printers: Ideal for building Prusa i3, Hephestos, and other open-source RepRap style printers.
CNC Machines: Can be adapted for small-scale CNC engraving machines with minor firmware modifications.
Educational Projects: Excellent platform for learning about embedded systems, G-code, and motion control.
