Dash Camera

Availability:

Quantity:



Inquire Add to Basket

Product Description

1. Product Overview

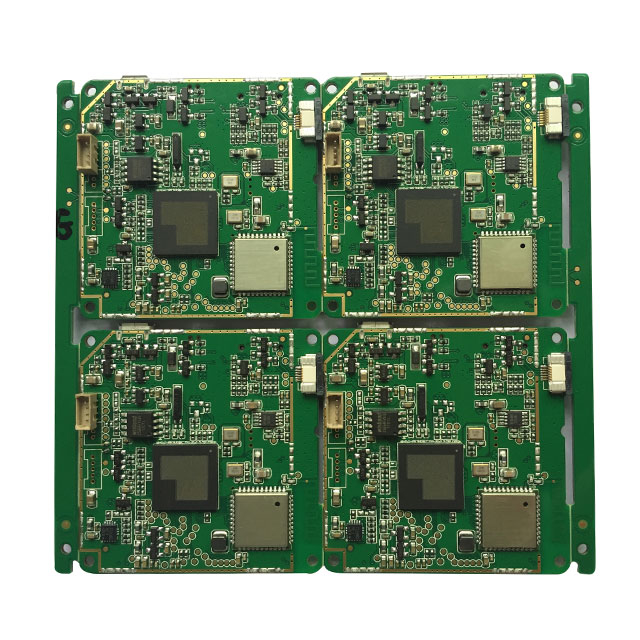

This high-precision multi-layer PCB module is engineered specifically for premium automotive dash cams. Integrating a high-performance ISP (Image Signal Processor) and an industrial-grade PMU (Power Management Unit), it supports real-time dual-channel high-definition video encoding. Its compact layout and superior thermal management ensure long-term stability in the harsh, high-temperature, and high-vibration environment of vehicles. It is the ideal core hardware platform for building flagship-level car video recorders.

2. Technical Specifications

Parameter Item	Specification
PCB Dimensions	65 x 58 mm
Board Thickness	1.6 mm
Copper Weight	1 oz (35μm)
Surface Finish	Immersion Gold
Solder Mask Color	Matte Green
Input Voltage	Matte Green
Main SoC Package	QFN / LGA
Sensor Interface	MIPI CSI-2 / DVP
Storage Interface	SDIO 3.0
Operating Temperature	-20°C to +70°C
Layer Count	6 Layers

3. Packing & Logistics Data

Packing Item	Data Specification
Unit Weight	Approx. 15 g
Standard Panelization	2x2 or 4x4 Array
ESD Protection	Shielding Bag + Vacuum Sealed Tray
Quantity per Carton	1000 pcs
Carton Dimensions	45 x 35 x 30 cm

4. SMT Assembly & Production Data

Component Type	Minimum Package / Pitch	Mounting Precision
IC Chips	0.4mm Pitch QFN	±0.05mm
Passive Components	0201 (0603 Metric)	±0.03mm
BGA / CSP	Ball Pitch 0.3mm	100% X-Ray Inspection
