1.Product Overview

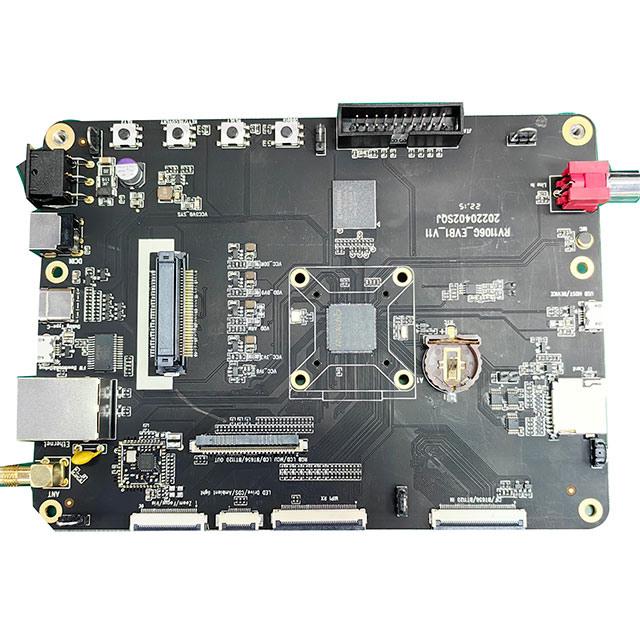

The RV1106G_EVB_V11 is a high-performance embedded development board designed specifically for machine vision and AIoT applications. Powered by the Rockchip RV1106G3 processor, it features a dual-core heterogeneous architecture comprising an ARM Cortex-A7 and a RISC-V MCU. Integrated with Rockchip's 4th-generation NPU (up to 1.0 TOPS) and 3rd-generation ISP, it supports 5MP video input and H.264/H.265 smart encoding. With rich peripheral interfaces, interactive modules, and a complete Linux SDK, this board provides developers with a "one-stop" solution from prototype validation to mass production.
2. Technical Specifications
Parameter | Specification |
Processor | RV1106G3 (Rockchip) |
NPU Performance | 1.0 TOPS |
CPU Frequency | 1.2 GHz |
Memory/Storage | 256MB DDR3L / 8GB eMMC |
OS | Linux |
Camera | 1x MIPI CSI (4-Lane) |
USB | 1x USB Host + 1x USB Device |
Power/Size | DC 9~18V / 95 x 60 mm |
Operating Temp | -20°C ~ +85°C |
3. Packaging & Shipping
Each board is individually packed in an anti-static shielding bag to prevent electrostatic damage.
Outer cartons are lined with high-density EPE foam/bubble wrap to ensure safe long-distance shipping.
