1. Product Overview

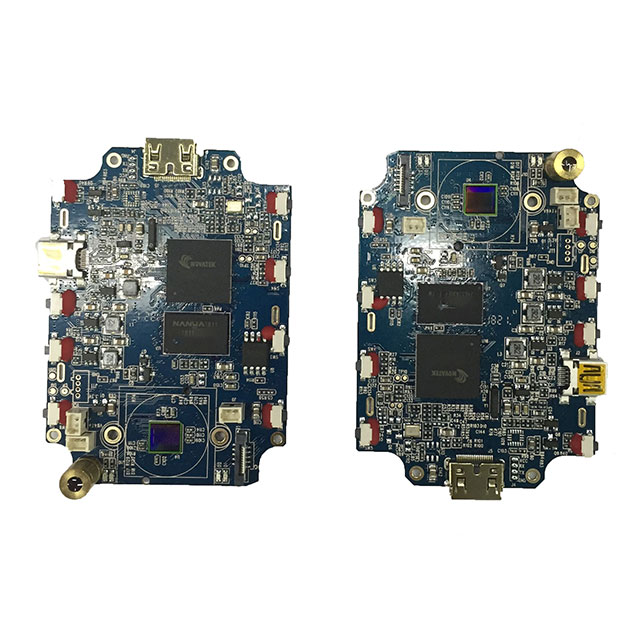

The HiSilicon IPC Network Camera Motherboard is a highly integrated core control board designed specifically for the security and surveillance industry. Powered by HiSilicon's advanced video processing SoC, this motherboard serves as the "brain" for IP cameras, smart doorbells, and baby monitors. It features a compact blue PCB layout with optimized signal integrity, supporting high-definition video capture, real-time H.265/H.264 encoding, and stable network transmission. Its low-power design and rich peripheral interfaces make it the ideal foundation for building cost-effective and reliable smart vision solutions.
2. Technical Specifications
Feature | Specification |
Main Processor | HiSilicon SoC (e.g., Hi3516/Hi3518 series) |
Video Encoding | H.265 / H.264 High Profile |
Max Resolution | Up to 2592×1944 @ 20fps (4MP) or similar |
Memory | Integrated DDR3/DDR4 (Capacity varies by model) |
Storage | Supports SPI NAND/NOR Flash & MicroSD Card Slot |
Network | 10/100M Ethernet (RJ45) + Wi-Fi (802.11 b/g/n) |
Interfaces | USB 2.0, UART, I2C, GPIO, Audio In/Out, Sensor FPC |
Power Supply | DC 5V or 12V Input (via connector) |
OS Support | Embedded Linux |
3. Applications
Home Security: Smart IP Cameras, Video Doorbells, Baby Monitors, Pet Cameras.
Commercial Surveillance: Office monitoring, Retail store security, Warehouse management.
IoT Devices: Smart locks with video verification, Visual intercom systems.
Industrial Vision: Simple machine vision inspection, Remote equipment monitoring.
