1. Product Overview

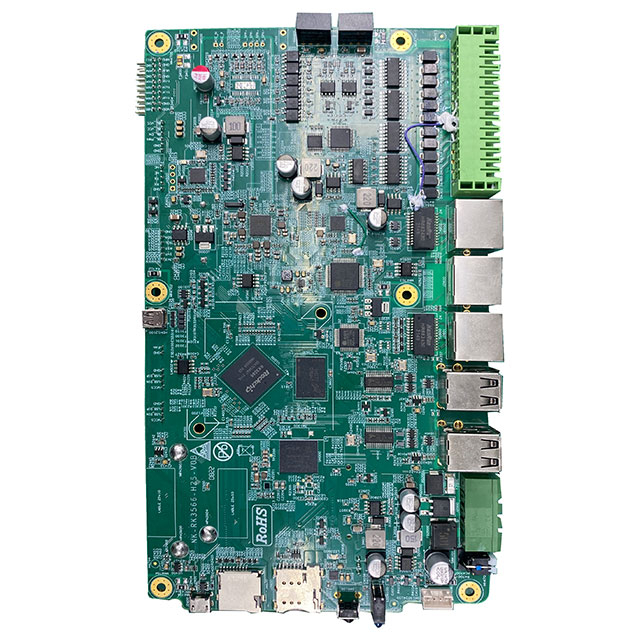

The CoreLink X-500 is a high-performance industrial embedded motherboard designed for demanding edge computing and automation applications. Built around a powerful multi-core ARM processor, this board integrates rich I/O interfaces—including dual Gigabit Ethernet, multiple USB ports, and industrial terminal blocks—into a compact form factor. It is engineered to serve as the robust "brain" for intelligent gateways, machine vision systems, and IoT controllers, ensuring stable operation in complex electromagnetic environments.
2. Technical Specifications
Parameter Item | Specification |
Processor Architecture | ARM Cortex-A55/A76 (Quad/Octa-Core) |
RAM Capacity | 4GB / 8GB LPDDR4 |
Storage Interface | eMMC 5.1 + MicroSD Slot |
Ethernet Ports | 2x RJ45 Gigabit Ethernet (10/100/1000M) |
USB Interfaces | 2x USB 3.0, 2x USB 2.0 |
Serial Communication | 3x UART (TTL/RS232/RS485) |
Power Input | DC 9V - 36V Wide Voltage |
Operating Temperature | -20°C to +70°C |
PCB Dimensions | 145mm x 100mm |
Mounting Holes | 4x M3 Standoff Holes |
3. Packaging & Shipping
Anti-static Packaging: Each board is packed in a sealed anti-static bag.
Protection: Shock-proof foam lining inside the carton.
