Product Description

1. Product Overview

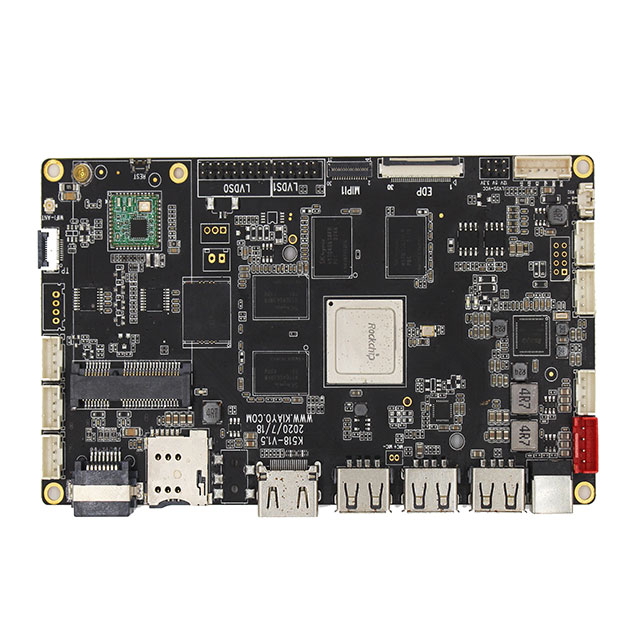

The Rockchip RK3288 Android Industrial Motherboard is a high-performance, low-power single-board computer designed for embedded applications in commercial display, smart retail, and industrial control. Built around the Rockchip RK3288 SoC — featuring a quad-core ARM Cortex-A17 CPU at up to 1.8GHz and Mali-T764 GPU — this board delivers smooth 4K video playback, dual-display output, and robust peripheral connectivity. Its compact black PCB layout integrates essential interfaces including HDMI 2.0, LVDS, eDP, MIPI, USB, Ethernet, and serial ports, making it ideal for digital signage, self-service kiosks, facial recognition gates, and HMI panels. Running Android 7.1 or Linux, it offers developers a mature ecosystem with extensive SDK support and long-term availability.

2. Technical Specifications

Parameter	Specification
Processor	Rockchip RK3288, Quad-core Cortex-A17 @ 1.8GHz
GPU	Mali-T764, supports OpenGL ES 3.1, OpenCL 1.1
Memory	DDR3/DDR3L/LPDDR2/LPDDR3, up to 2GB
Storage	eMMC 4.51, up to 32GB
Display Output	HDMI 2.0 (4K@60Hz), LVDS, eDP, MIPI-DSI
Video Decoding	4K H.265/H.264, 1080P VP8/VC-1/MPEG
Connectivity	10/100M Ethernet, Wi-Fi 2.4/5GHz, BT 4.0
Expansion Interfaces	4x USB, 4x UART, GPIO, I2C, SPI
Power Supply	DC 5V/2A or 12V/1A
Operating Temperature	-20°C to 85°C
Dimensions	Approx. 120mm x 80mm
